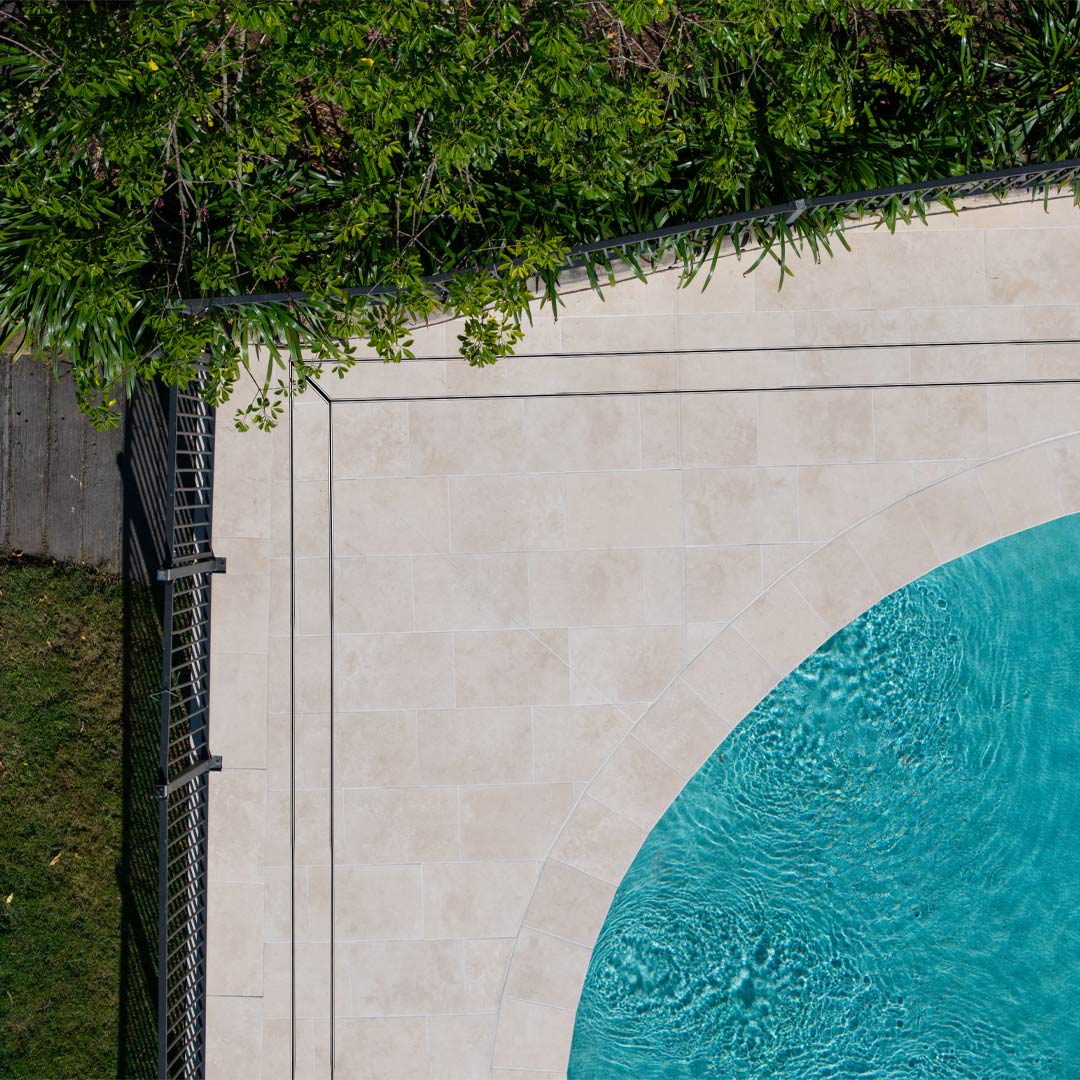

Linear Strip Drain Cover Kits

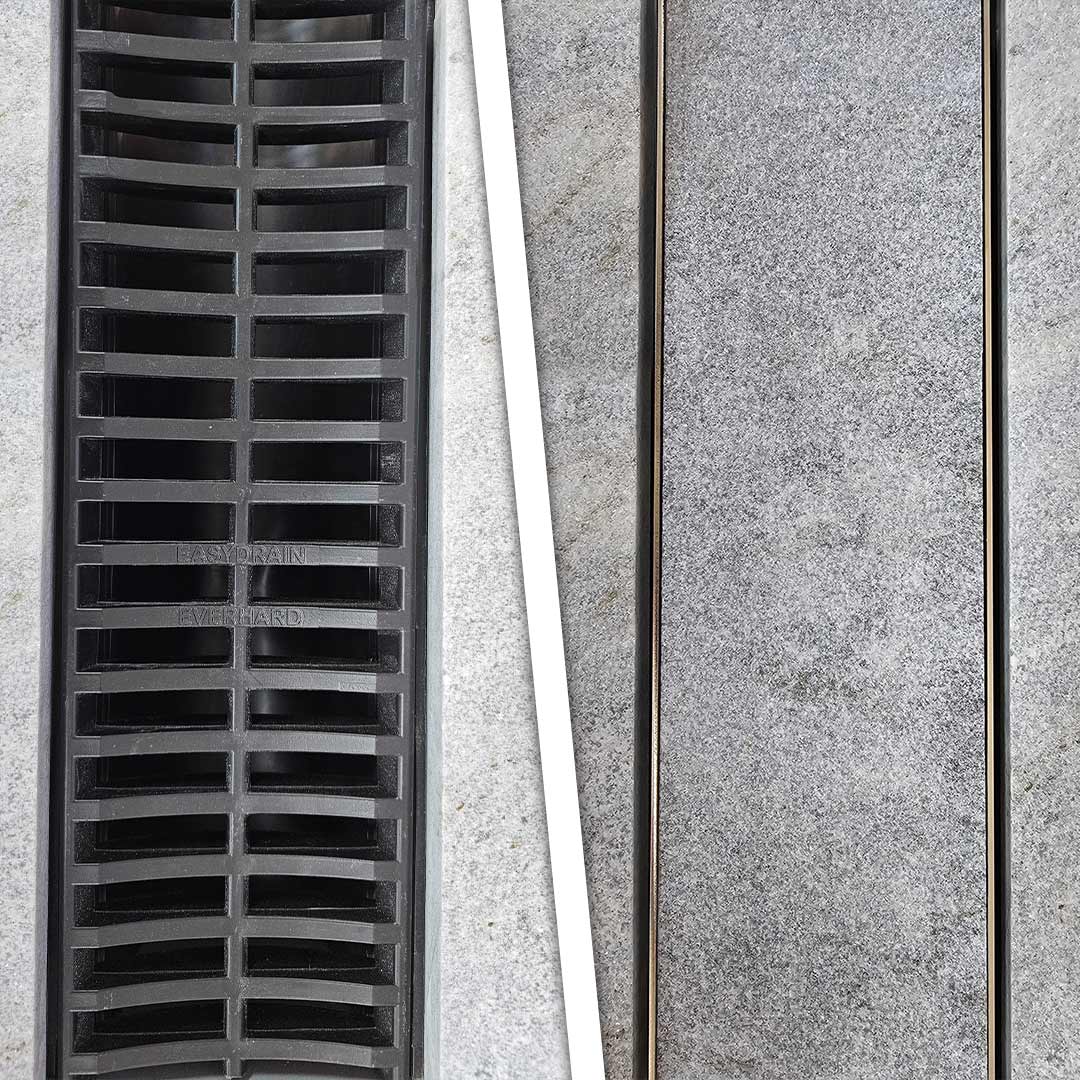

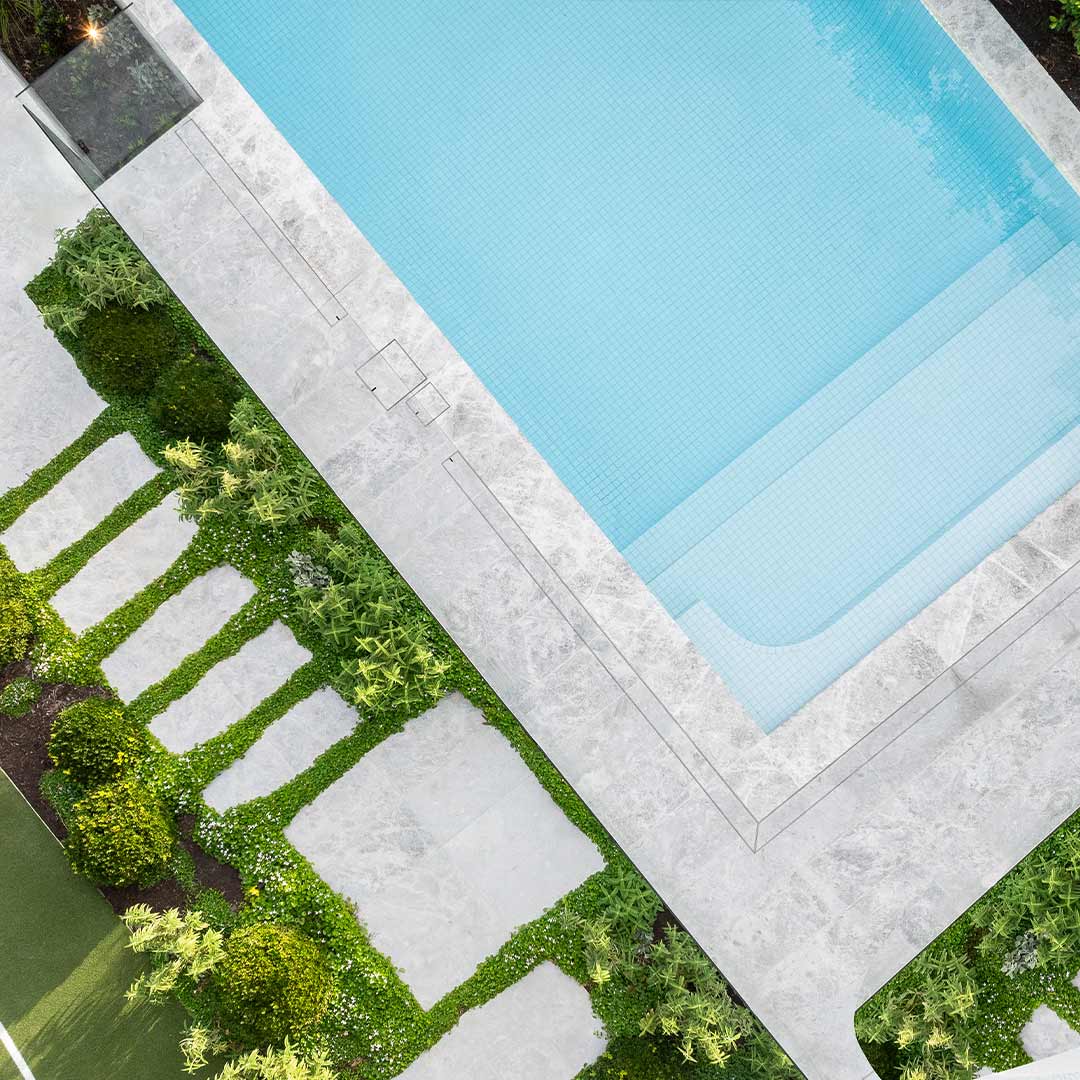

Linear Drain Covers

A recessed channel in the slab 20mm deep for widths 125mm or 112mm.
Or set up a drainage network with the available channels:

125mm is Compatible with Everhard easy drain (ED)

112mm is Compatible with Reln Storm Mate (SM)

Note: Channel installation as per manufacturer instructions

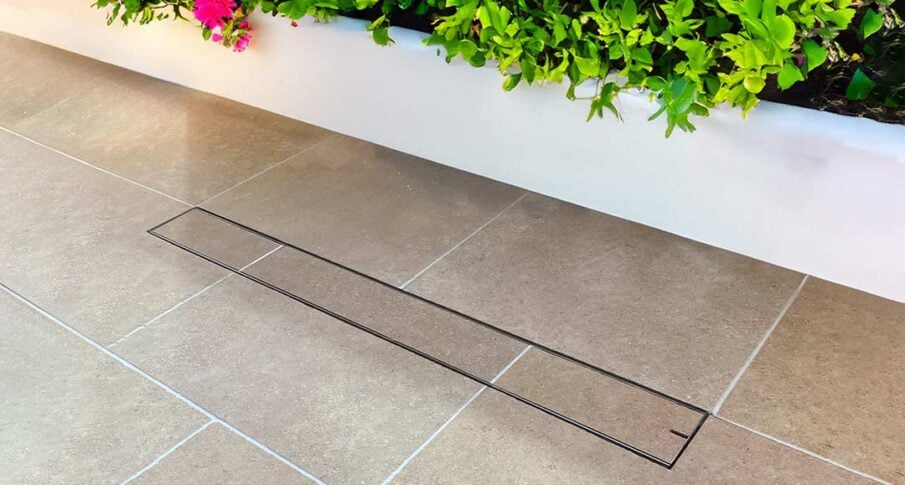

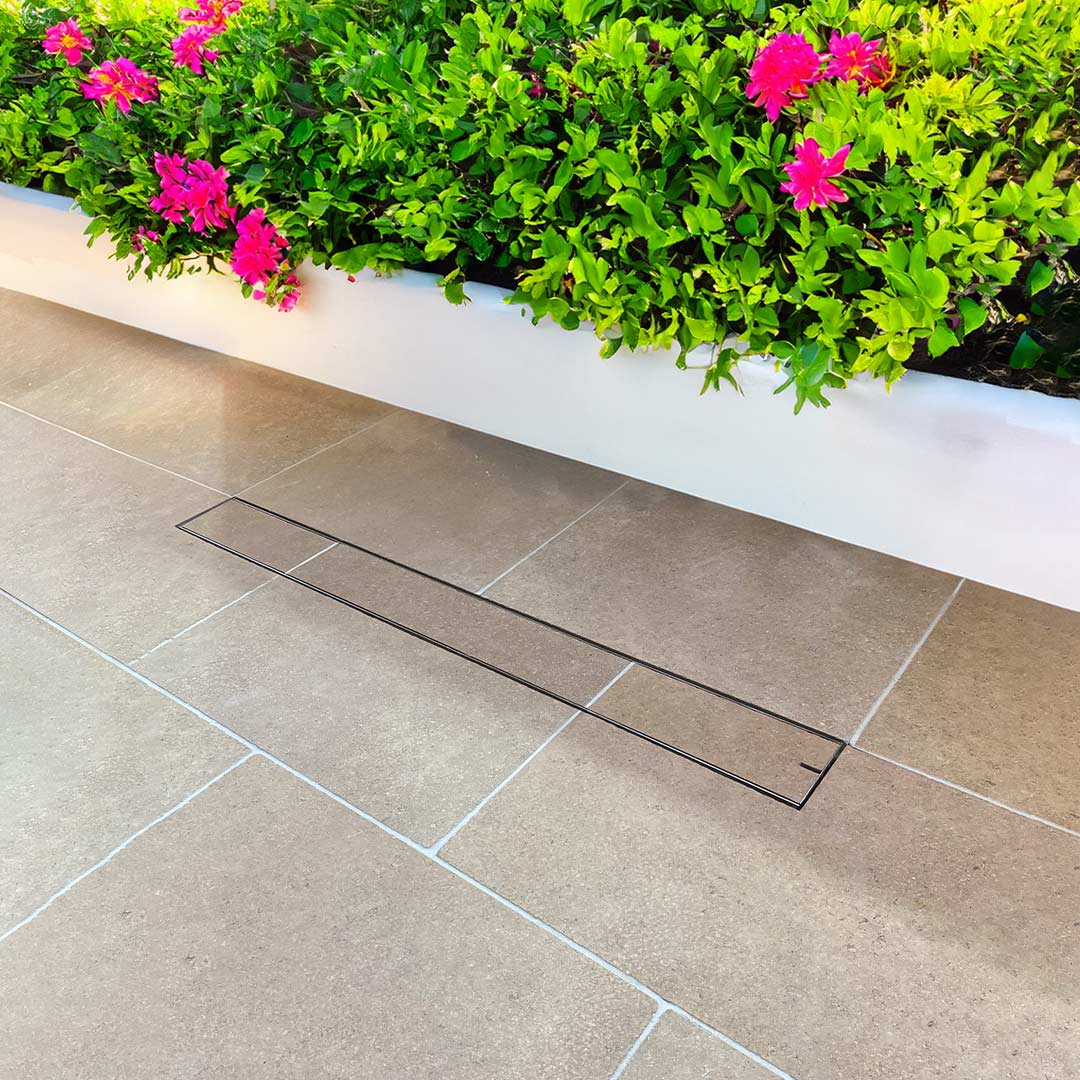

The channel must be flush with the tile fixing height (slab level), as the HIDE Linear Drain Cover sits above the channel, flush with the top of the tile.

Three depths to suit stone from 8mm to 32mm thick

• Flexibility with 1210mm modular lengths
• One finishing kit is required per project
• Optional tile edge trim 316 Stainless

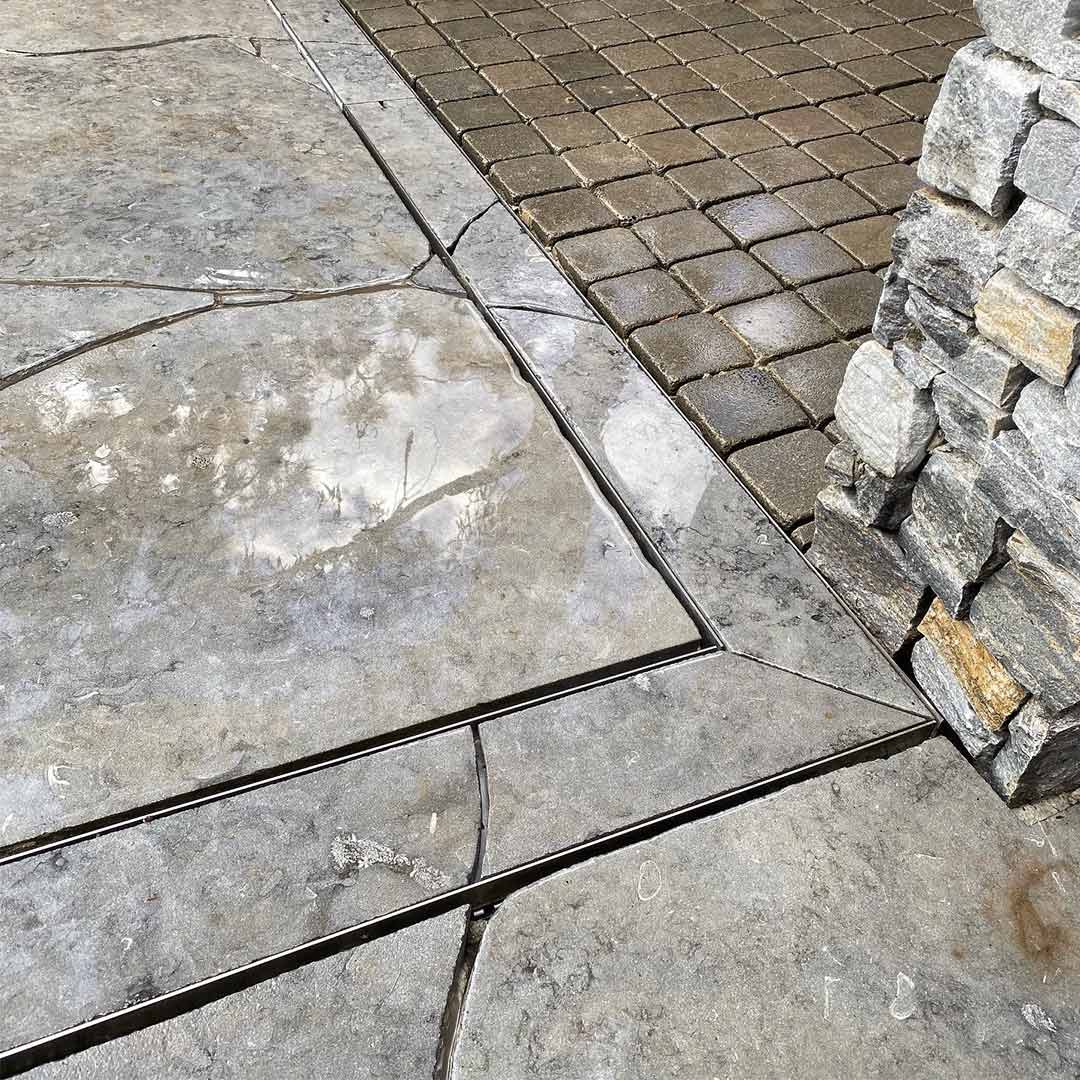

• Prefabricated 90ø Corner kits

(see table below for all specifications)

NOTE: It is very important that your tile layer understands the installation process of this product and the additional height requirements before fixing the channel drain.

Videos:
Understanding the parts and components: click here
On-site Installation: click here

Set out ED or SM channel drain at slab level (under tile height). Install the HIDE Linear Drain System above the channel at the finished tile height. The ‘Tabs’ allows up to 10mm of height adjustment if required. Bend down ‘tabs’ at either end to centralise the HIDE System and keep the spacing even along the drain. If required adjust the heights using level adjusters’ (supplied) and use the ‘Adhesive’ (supplied) to fix components into position.

One ‘Finishing Kit’ is required per project. Each Finishing kit includes a lifting/tab key, one stain steel cutting disc & two ‘End Caps’. End caps are a finishing detail for both ends of an installed cover or specify additional end caps for a modular layout.

TIP: You will only need one ‘Key Hole’ per multiple channel cover (not every length) as the remaining covers can be lifted once the first length is removed with the key. Also, use the supplied key to bend down the ‘Tabs’, a handy dual-purpose tool.
