Hide Kits
- Non Conductive options now available. See below.
- Suited for any access purpose
- 316L Marine-Grade Stainless Steel
- 20-year warranty on Stainless
- Select your own wet-pour infill
- Available in range of sizes
- New or existing pools
- New easy form 'Collar' option (see below)
- Flush finish
- Australian pool safety compliant
- Drain covers also available
- External landscape use

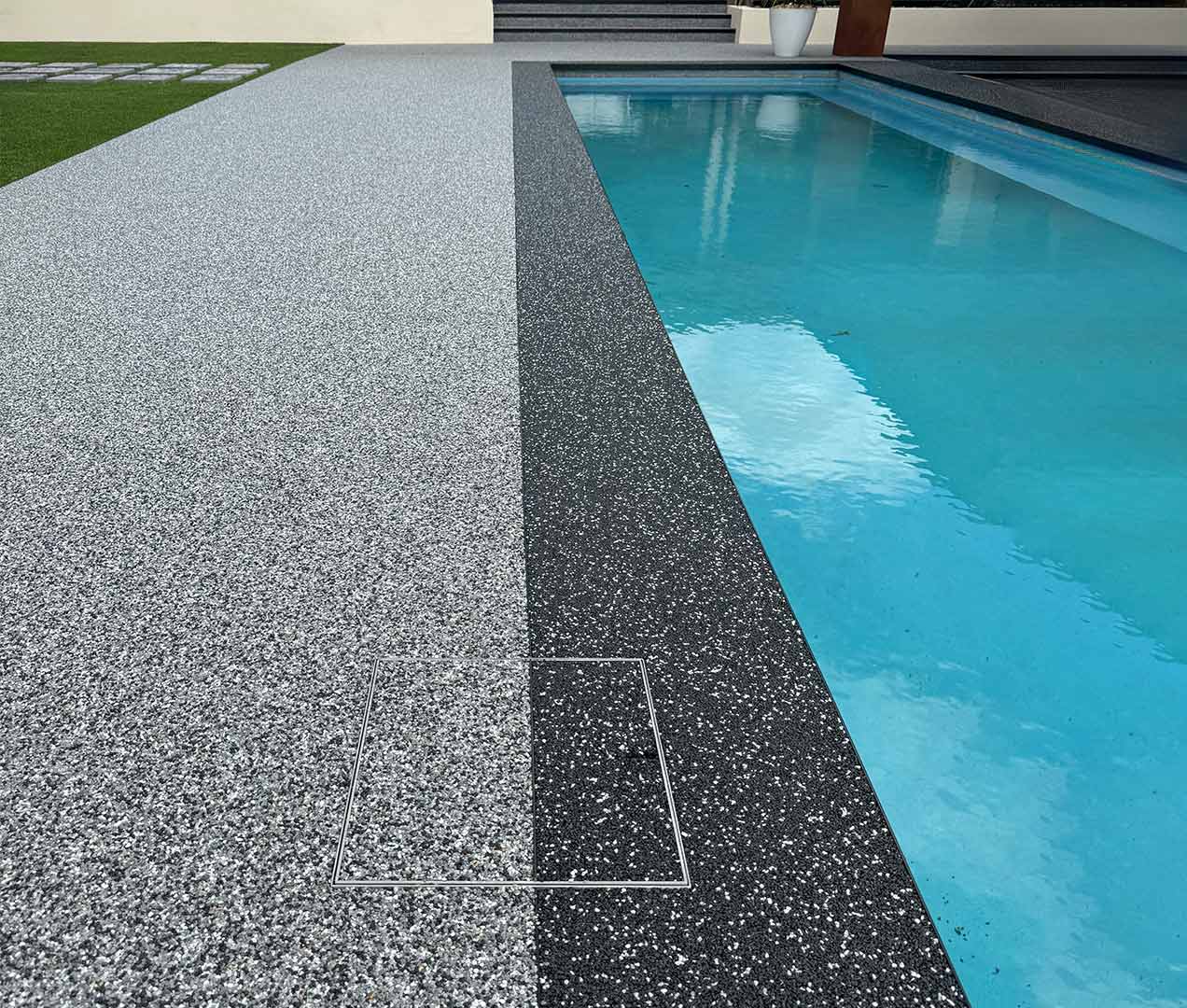

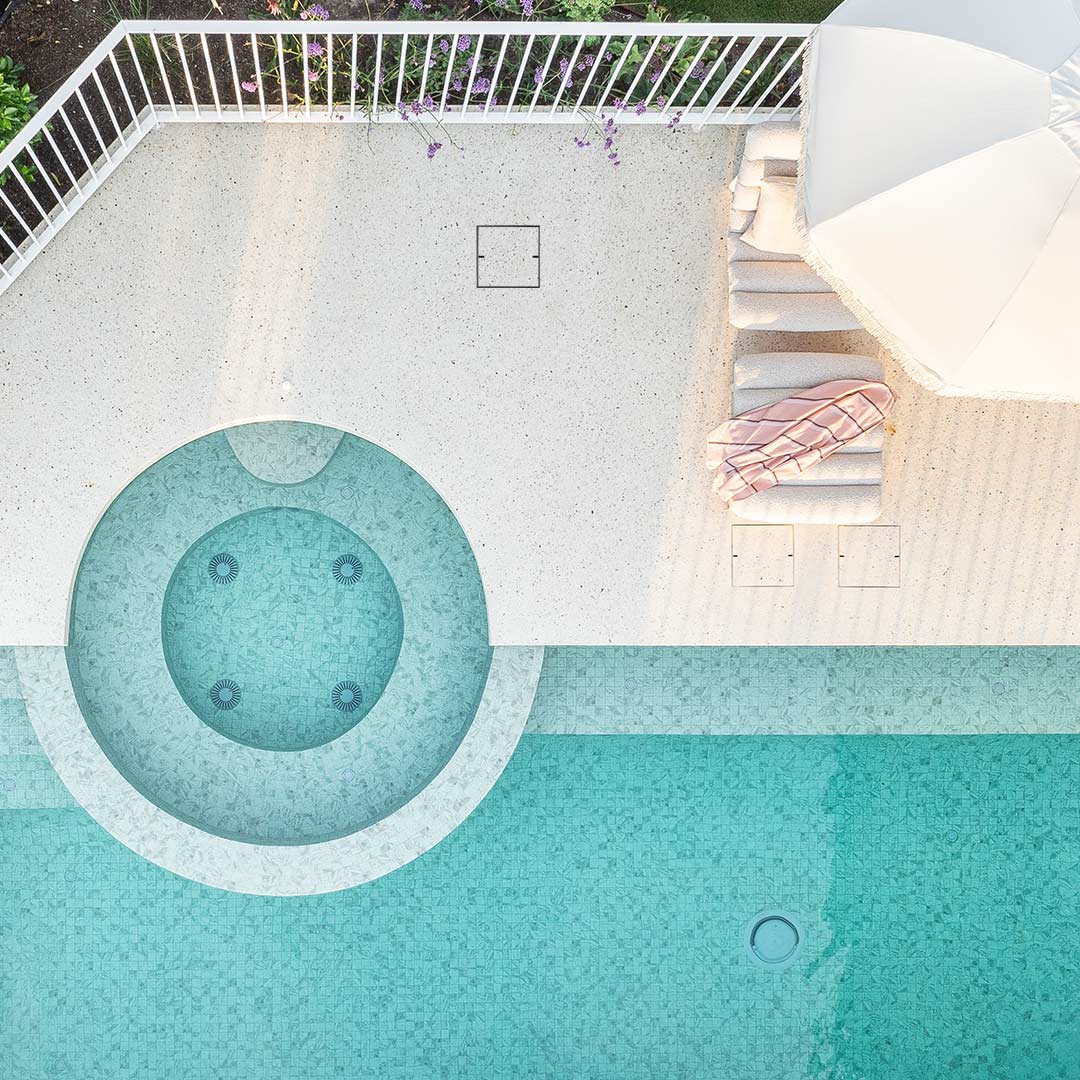

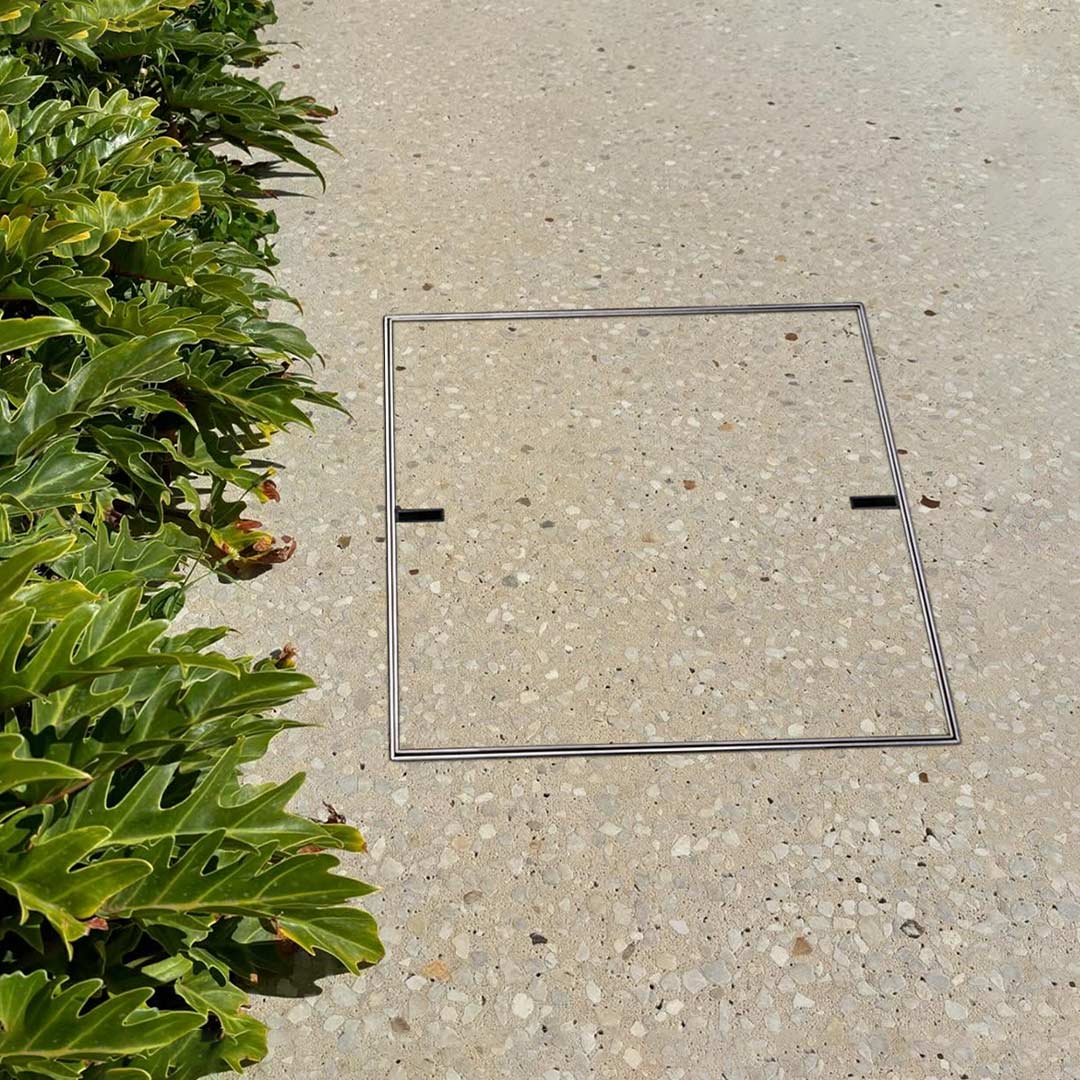

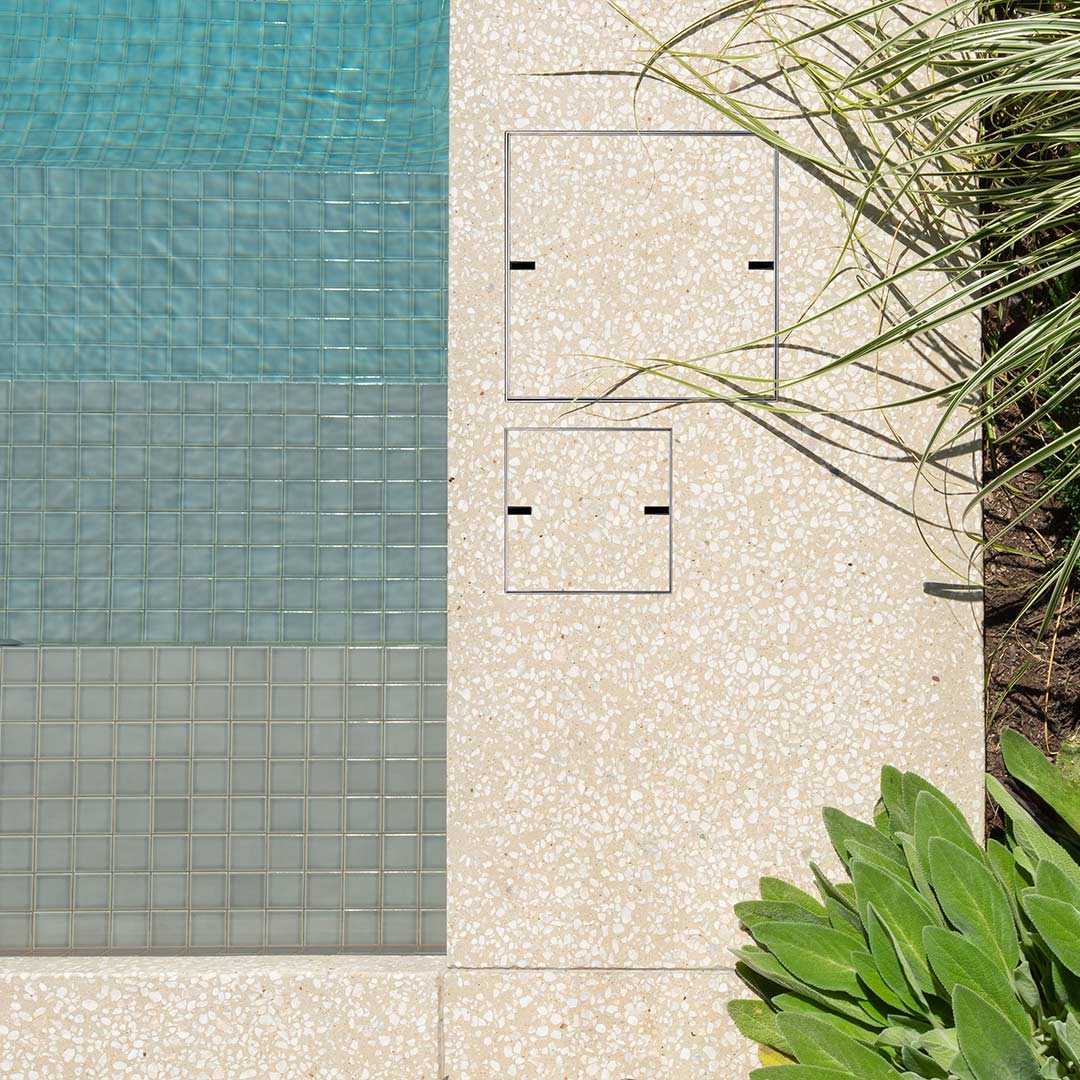

Concrete wet-pour covers
Wet-pour concrete kits are available in 156mm, 206mm, 256mm, 306mm and 342mm square with a 40mm depth. These sizes suit most concrete applications, including skimmer covers (see table below).
New Products:

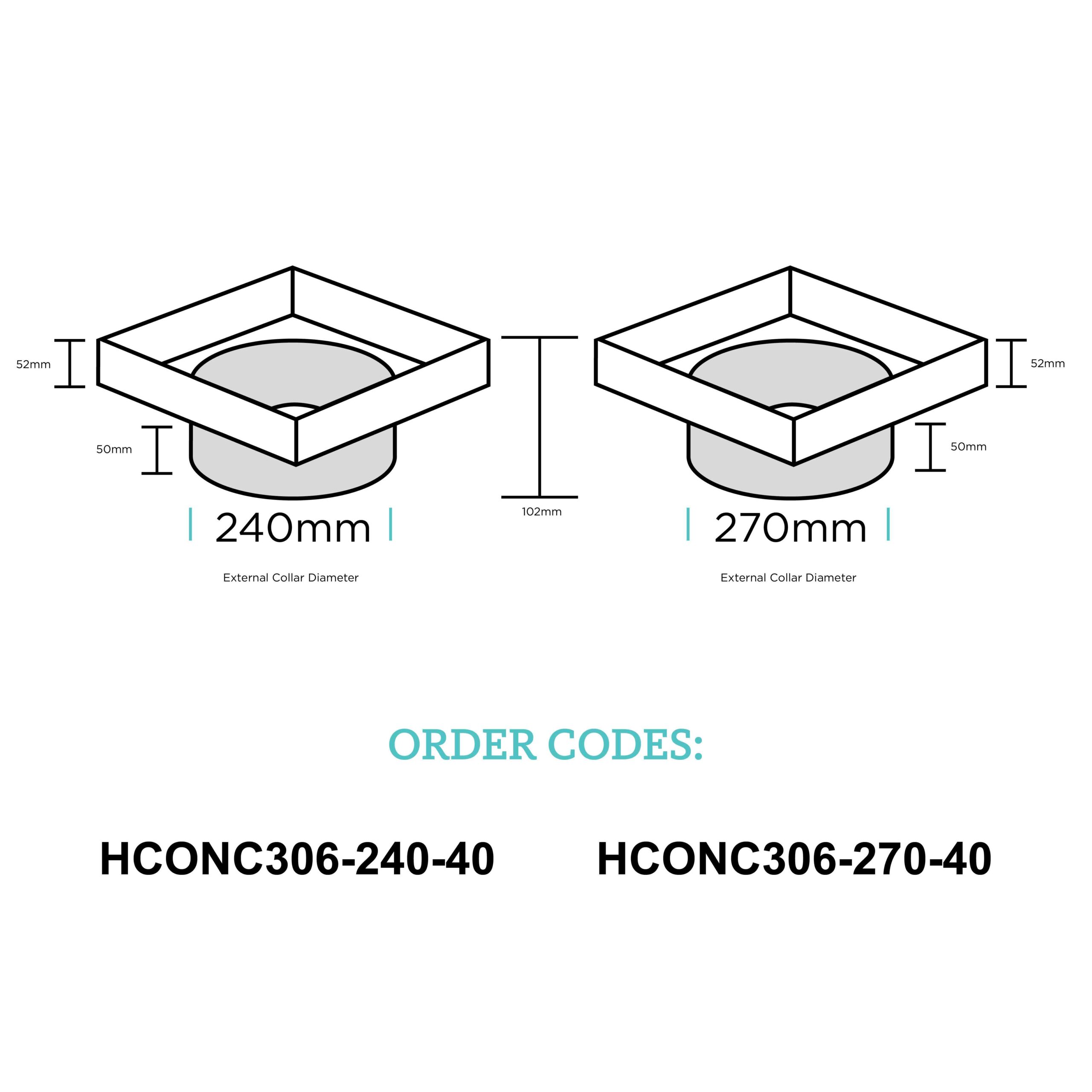

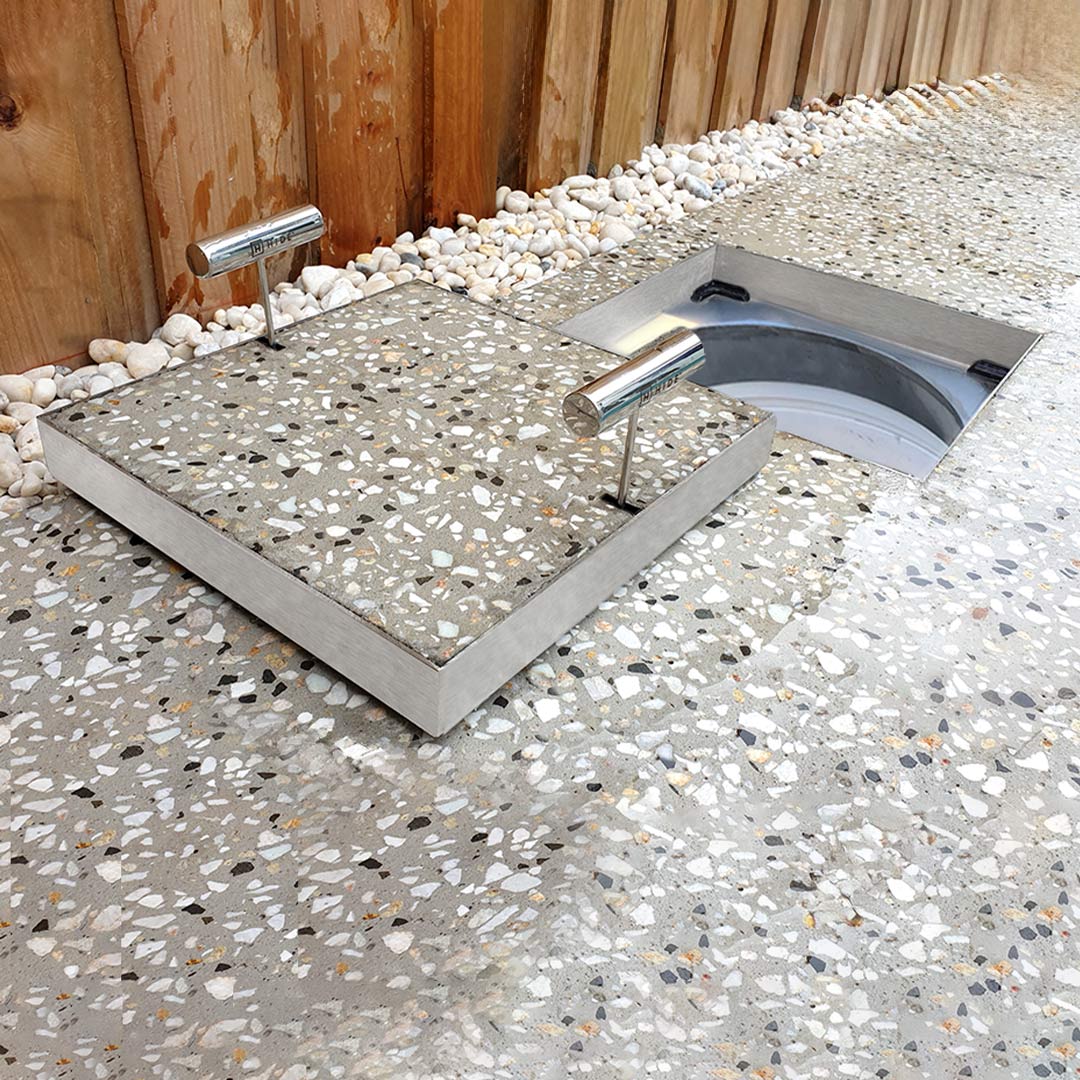

- Concrete Skimmer Lid model with a ‘COLLAR’.
The collar fits into the skimmer’s neck, creating a barrier when pouring concrete and making it easier to bed and set heights. It’s a mess-free solution you may like (see below for more details). - Concrete 342 Drain Cover. It is slightly larger than our 314mm square Drain Cover, but the 342 fits perfectly into the Series 300 Everhard Stormwater Pit. They are a match made in heaven.
- Concrete Linear Drain Cover @ 1000mm in length. The brand new, fit-for-purpose concrete wet-pour linear drain is a first of its kind. 40mm in depth, this sturdy, robust and removable concrete strip-drain cover is discrete and a first-class addition to any new landscape.
Videos to feed the imagination:
- Get technical with Gary in this 5-minute video. Gary explains installation and components.
- Check this video out. HIDE Concrete Linear Drain is being installed. It’s a game-changer.
- Here is a short video explaining the concrete range with Chelsea.
- Gary explains the workings and gives valuable tips on installation with the Concrete Linear Drain.
More Information:
- Go to our dedicated page – All about HIDE Linear Drain Covers.
New Product Release

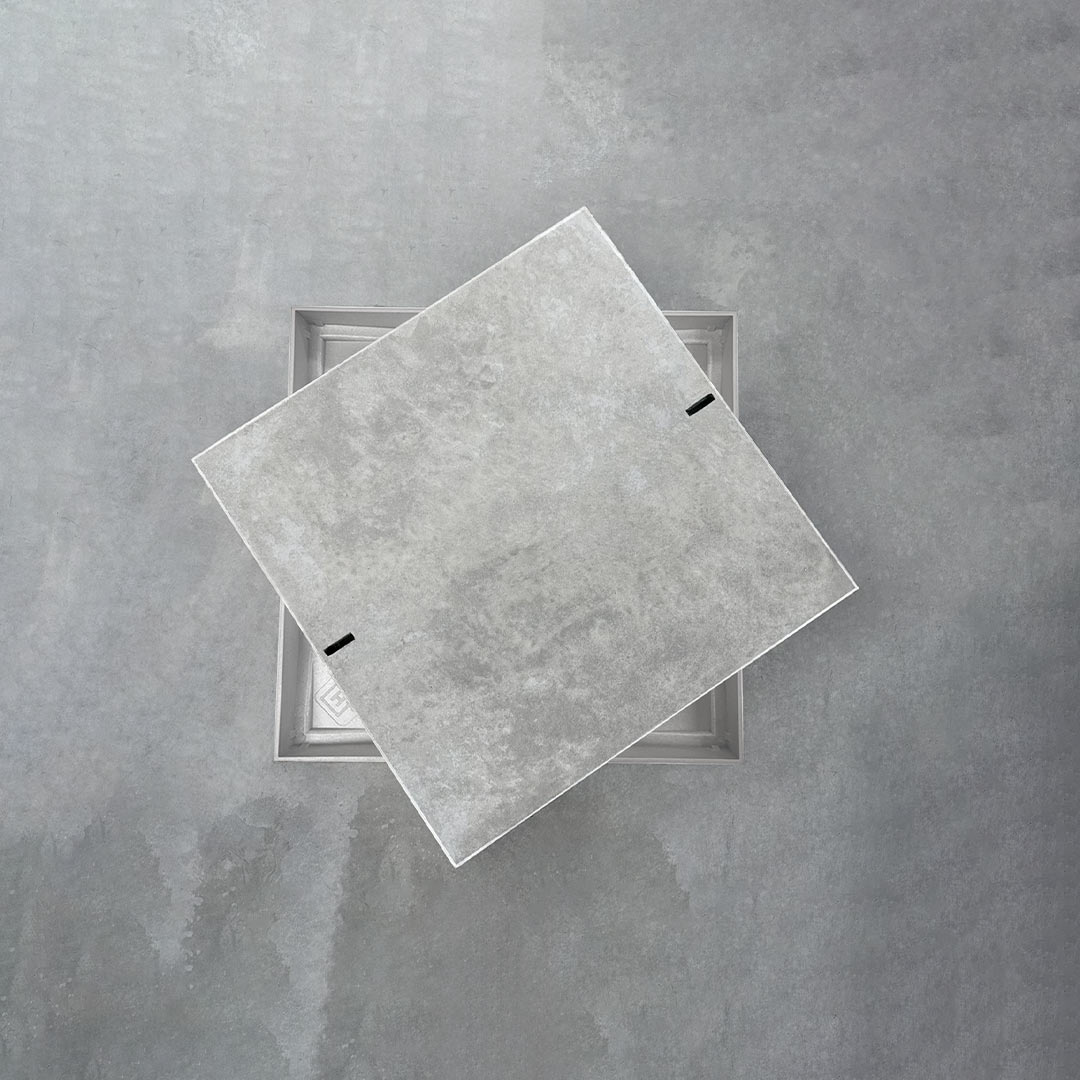

Concrete Infill Polymer Covers now available

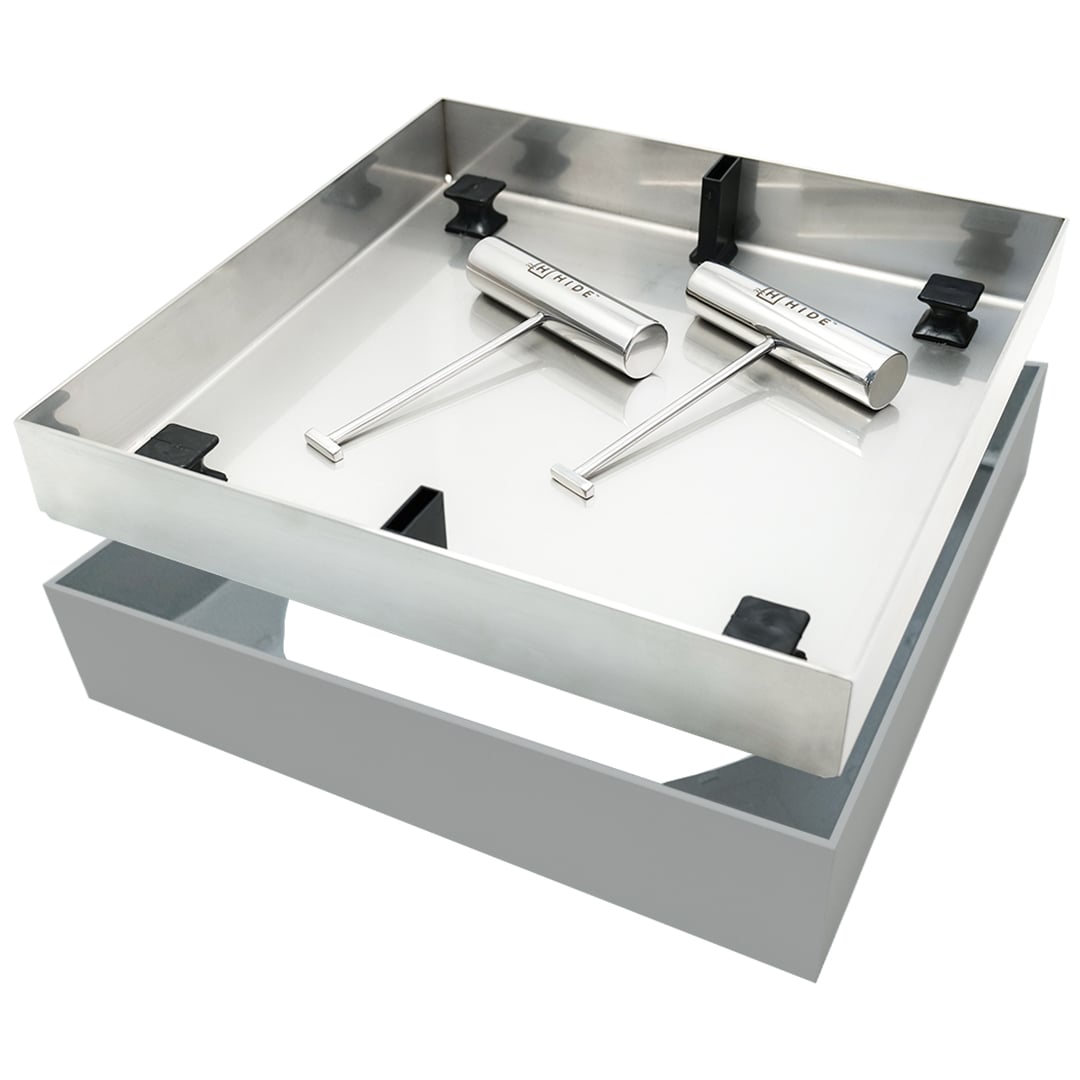

Concrete Infill Non-Conductive Covers
HIDE has just released Australia’s only fully non-conductive concrete infill Skimmer Lid. The removable 316 Stainless Steel Concrete Infill Skimmer Lid does not need to be earthed because a non-conductive Polymer Edge Protector fully insulates it. HIDE’s internationally awarded innovative Skimmer Lids are a game changer in concrete.
- 43mm concrete lid depth
- Two easy-form keyways and four lugs for optimal strength
- Supported by 2mm of 316L stainless steel
- Insulated by an advanced polymer recess frame
- Ash Colour to match the concrete
- No Earthing or bonding is required
- Sizes: 342mm Skimmer Lids & 206mm Access Covers.
- HIDE Stainless Steel Skimmer Lids have a pre-drilled hole for a licensed electrician to attach an earthing wire.
- HIDE Polymer components are non-conductive and do not require earthing.
Don’t be misled into thinking powder-coating is a suitable earthing solution. Master Electricians Association (MAE) is unsatisfied that powder-coated items are non-conductive. “The coating is too thin and will fail (become conductive) as soon as the brittle coating is compromised or scratched” MAE.
Your HIDE Cover
Discuss HIDE installation at the early stages of your new landscape design.
Electrical Compliance (Earthing)
All swimming pool construction and refurbishments in Australia require compliance with legislated electrical work regulations. Always consult a licensed electrician to discuss required earthing requirements.
Learn more:
Pedestrian Traffic Only
Specify HIDE for installation in pedestrian areas only.
Warning: No Acid Contact
Do not allow acid or chemical wash solutions to contact the HIDE product.
Learn more:

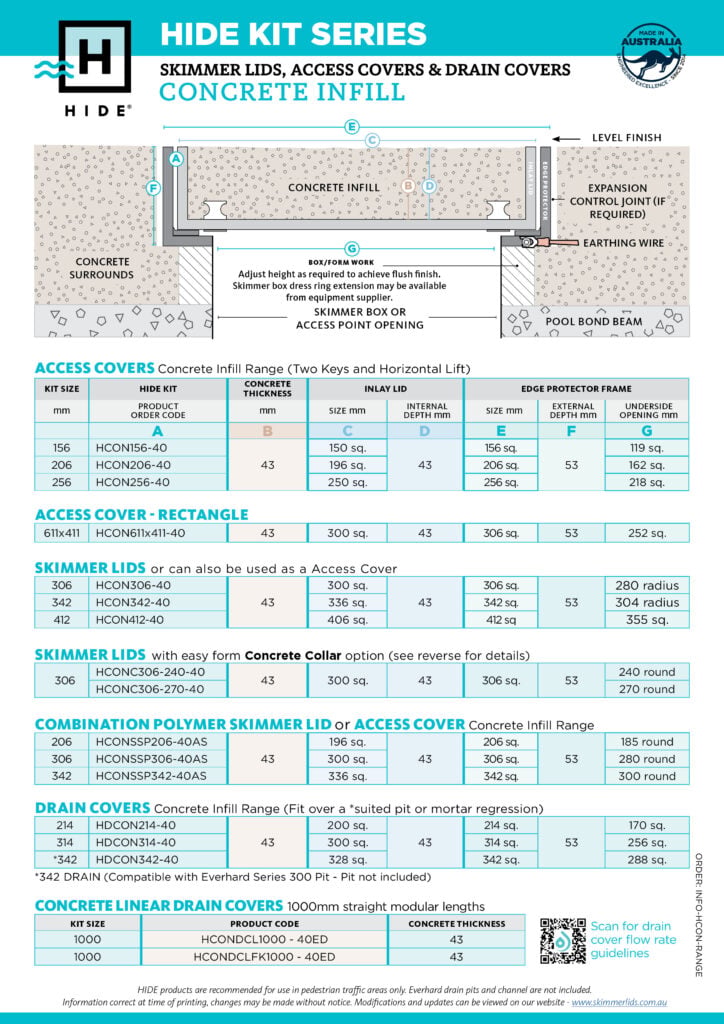

Download PDF:

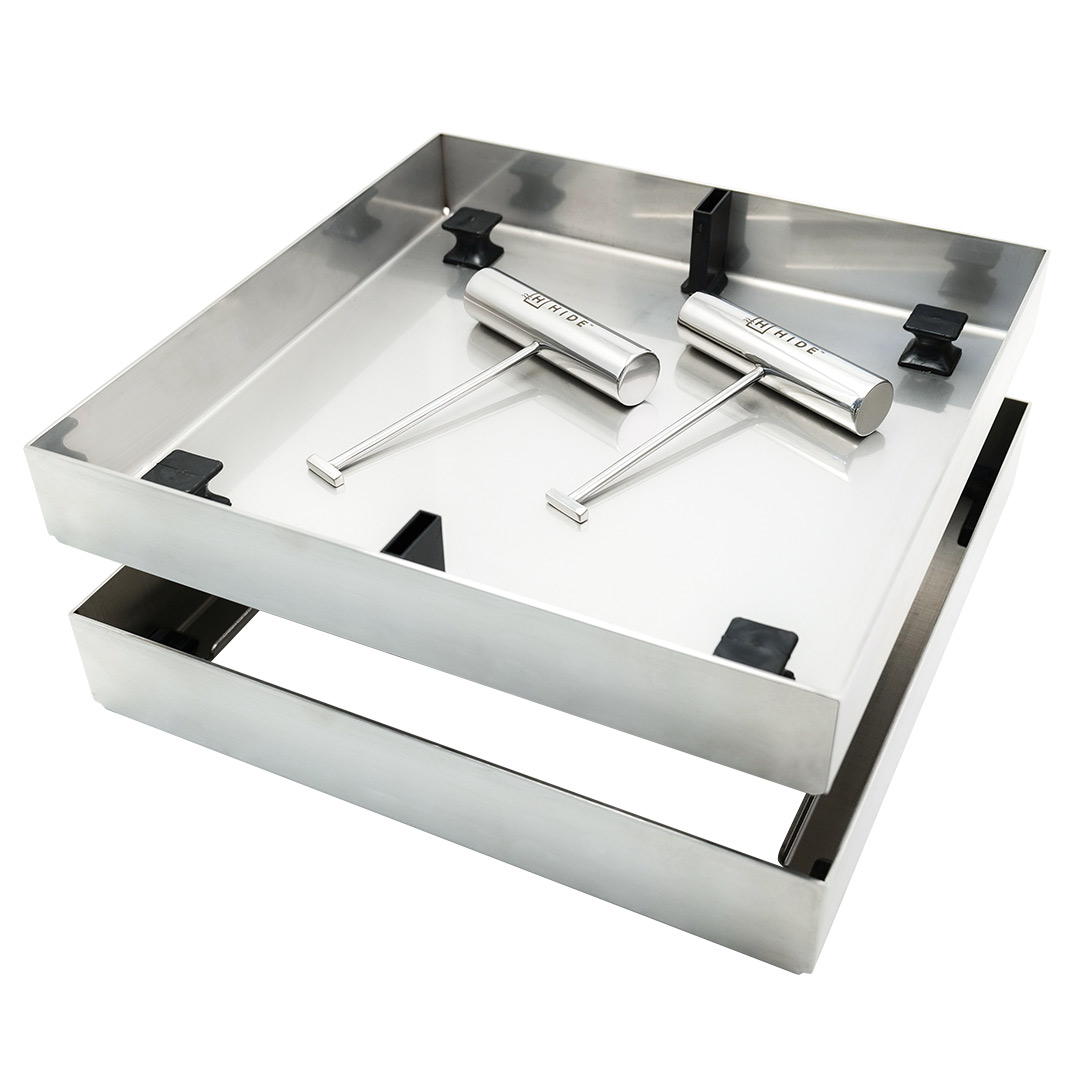

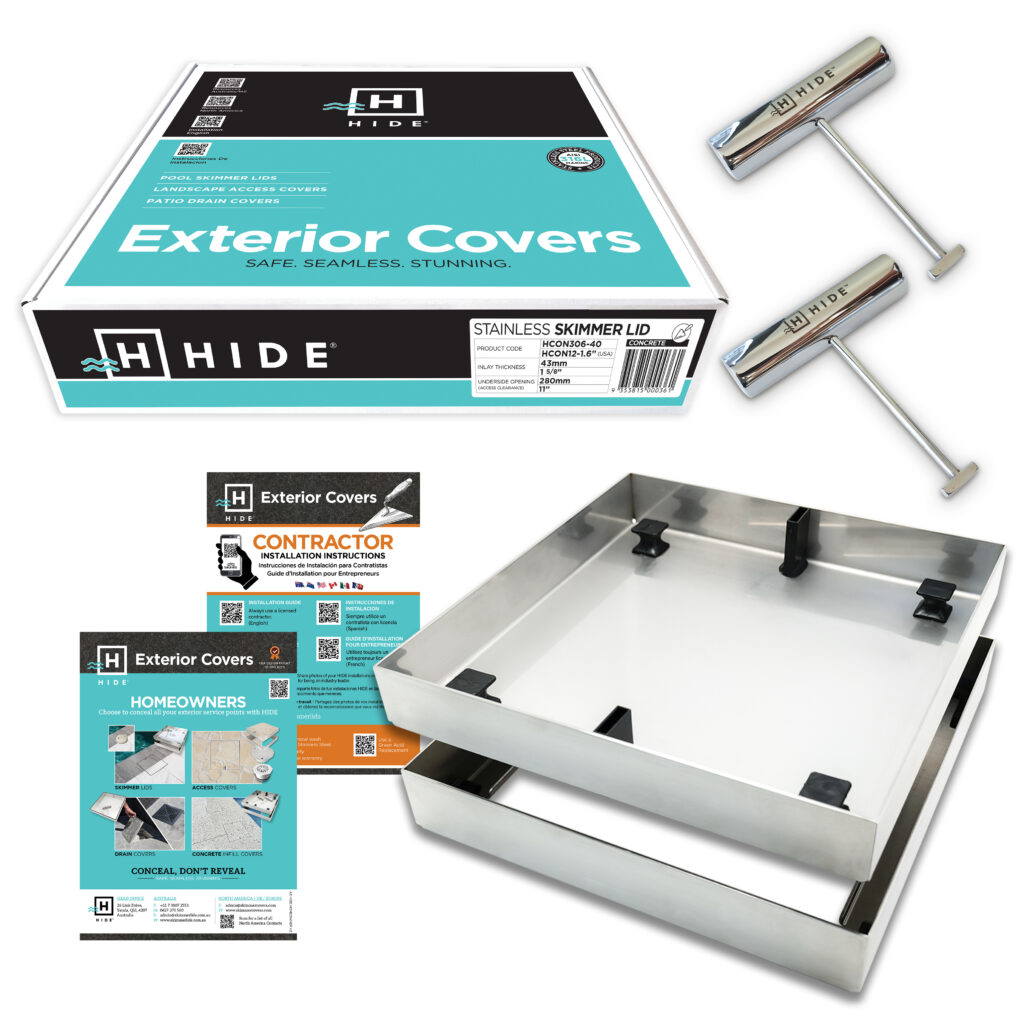

Hide Kit Content
A Quick initiation
1. HIDE Safety Key
A stainless steel tool to enable the installed HIDE lid to be safely and easily opened/closed. The concrete kit comes with two keys.

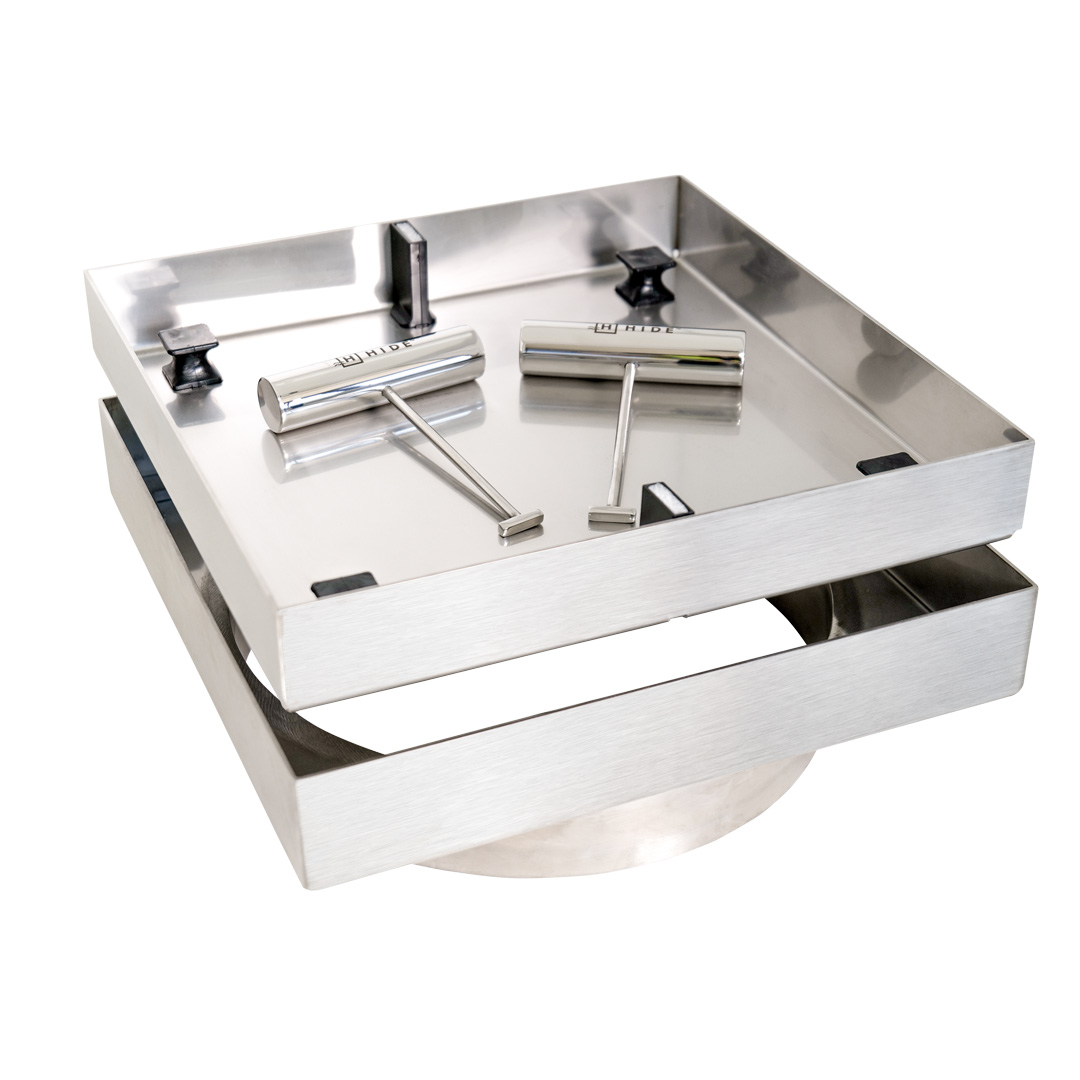

2. HIDE Concrete Inlay Lid
A stainless steel tray which holds the concrete wet-pour mix. This lid contains ABS Polymer lugs to hold the concrete into the lid and key formers which the keyway for the lid.
3. HIDE Edge Protector
A stainless steel frame inserted into a recess within the landscaped area. It protects the copping/surrounds from chipping/breakage when the inlay lid is opened/closed.
4. Documents
Contractor installation instructions, home owner information and warranty.
BACKED BY A 10 YEAR WARRANTY!
You know you are purchasing a quality product when you receive a 10 year warranty.
And that’s exactly what you receive with a HIDE kit. We offer such a long-standing warranty because we’ve designed our lids to be set-and-forget. Hide lids are 100% safe, constructed of high-grade materials with a beautiful finish, and maintenance is required only occasionally. HIDE warranty covers the Safety Key, the Inlay Lid and the Edge Protector.
Meanwhile, other traditional landscape lid options can have durability issues which require regular, and often costly, lid replacement. Due to these durability issues, the homeowner usually receives little to no warranty coverage.
So, which option would you rather?
